Technically yes, but not as a simple plug-and-play swap. A Smart Battery Isolator can be used with Suzuki outboard engines, but it’s not plug-and-play, and you must ensure compatibility with the engine’s charging system, especially on newer models.
A thorough explanation
The Suzuki Battery Isolator Lead Set is a factory-designed wire that seamlessly connects to the electrical system and alternator of Suzuki outboard engines. Usually, an isolator based on a diode or relay is integrated into the wiring to guarantee correct dual battery charging and protection without the need for human intervention.

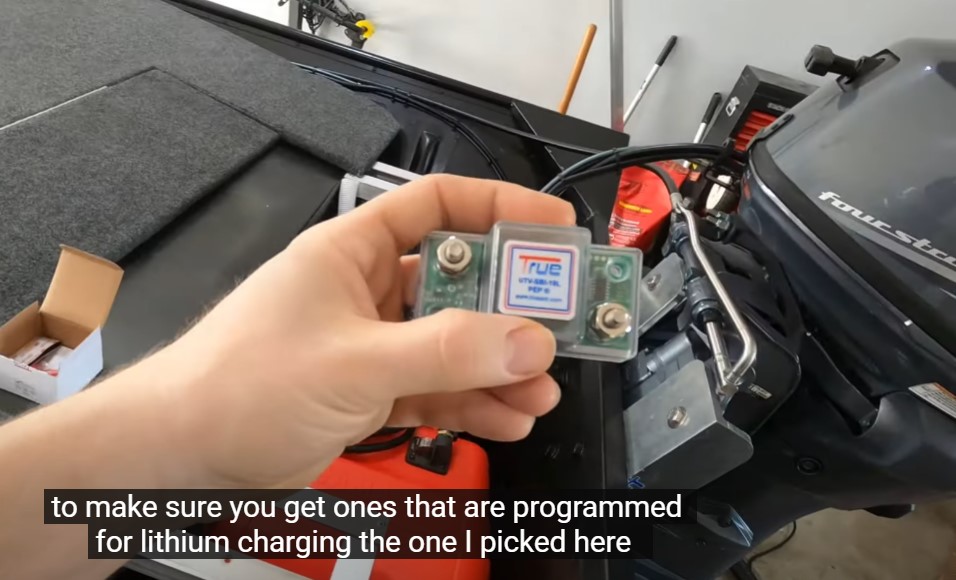

An aftermarket gadget called a Smart Battery Isolator (also known as a True® Smart Battery Isolator) connects or isolates batteries by automatically sensing voltage. Although it needs specialized wiring and installation, it is more sophisticated and adaptable.
Why a Smart Battery Isolator might be better:
- Advanced Features: It automatically manages battery charging based on voltage levels, often more efficiently than basic OEM isolators.
- Flexibility: Supports various battery chemistries (AGM, lithium, etc.) and can be used in more complex electrical systems.
- Additional Functions: Some models integrate with solar charging or offer adjustable settings for voltage thresholds.
- Reduced Voltage Drop: Many smart isolators use MOSFET technology, which causes less voltage drop compared to diode isolators.
Why the OEM Suzuki Battery Isolator Lead Set might be better:
- Guaranteed Compatibility: Designed specifically for Suzuki outboards and matched to their alternator and electrical systems.
- Plug-and-Play: Easy installation with no wiring modifications.
- Warranty Support: Using OEM parts maintains your Suzuki warranty and support.
- Simplicity: Ideal for straightforward dual battery setups without added complexity.
What to Consider: Suzuki Battery Isolator Lead Set vs Smart Battery Isolator
| Factor | Suzuki Battery Isolator Lead Set | True® Smart Battery Isolator |
|---|---|---|
| Plug-and-play | Yes, designed specifically for Suzuki engines | No, requires custom wiring and setup |
| Compatibility | Perfectly matched to Suzuki charging system | May need adjustment and careful wiring |
| Installation | Simple OEM accessory installation | Requires electrical knowledge and proper mounting |
| Functionality | Basic isolation to protect starting battery | Advanced voltage sensing, more features |
| Warranty/Support | Supported by Suzuki | Aftermarket, no Manufacturer’s warranty |
| Marine rating | Designed for marine environment | Depends on model chosen |
But Consider These Caveats:
1. OEM Limitations
Suzuki’s Battery Isolator Lead Set is designed specifically for their engines. It plugs into a dedicated port or wire harness and matches the alternator’s behavior.
Using a third-party universal dual battery isolator will bypass this design, requiring minimal custom wiring without using the alternator to preserves your warranty.
2. Regulated Voltage Behavior
Some Suzuki outboards use voltage regulators or ECMs (engine control modules) to manage alternator output. If the alternator is smart-controlled, the voltage may not behave in a way that standard smart isolators expect. Nothing to worry because the True Smart Battery Isolator Kit has extra wire for voltage regular. You can even replace it with True dual display voltage gauge to monitor both batteries.
This can cause unreliable engagement of the isolator, especially with VSR (voltage-sensitive relay) types.
3. Corrosion/Marine Grade Requirements
Marine environments require waterproof, corrosion-resistant components.
Waterproofing
- The True® Smart Battery Isolator is designed with a sealed casing, offering a good level of protection against moisture.
- It is generally splash-resistant but not fully waterproof or submersible like IP67 or IP68-rated devices.
- For marine environments, it is recommended to install the isolator in a dry, protected compartment
Reliability for Marine Use
- Many boat owners use True® Smart Isolators successfully in marine applications when properly installed.
- It reliably manages dual battery charging without significant voltage drop and automatically isolates batteries as intended.
- For saltwater or very wet environments, protective installation practices are key to reliability
When It’s Safe to Use a True® Smart Isolator on Suzuki Outboard Engines?:
- You understand and can tap into the charging wire from the Suzuki outboard.
- You install marine-rated components.
- You are not using or dependent on the Suzuki isolator lead system.
- You ensure the isolator’s engage voltage range (typically 13.3V–13.7V) matches the output of your outboard’s alternator under load.
Summary:
- You can replace the Suzuki isolator lead with a Smart Battery Isolator, but it involves rewiring, testing, and ensuring your engine’s alternator voltage is compatible.
- This replacement is better suited for people who want more control or advanced features and are comfortable with electrical work.
- For most users wanting a simple, reliable solution, it’s best to stick with the OEM Suzuki isolator lead set.
